>> Pre-Release Information <<

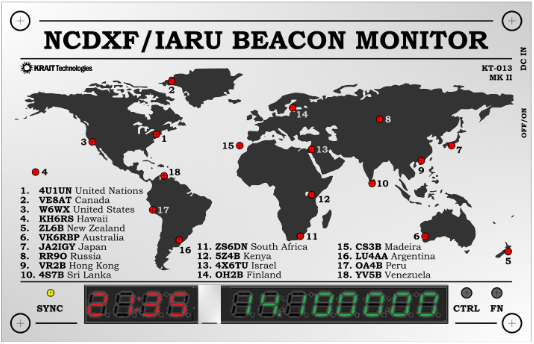

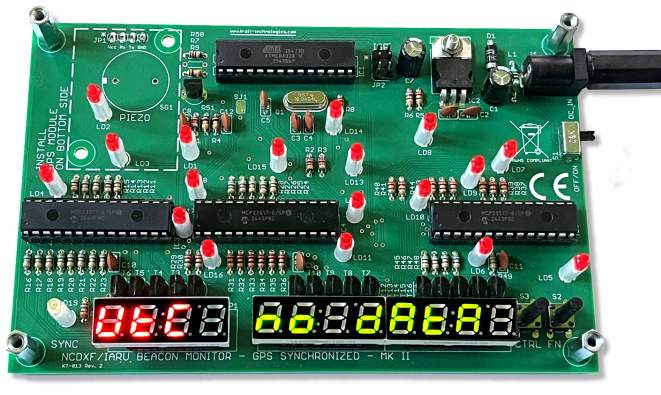

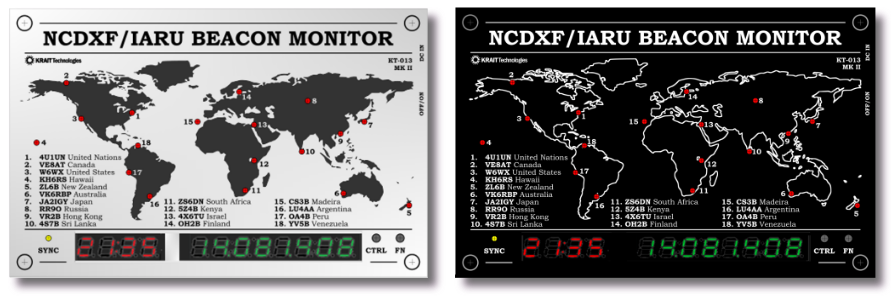

NCDXF/IARU Beacon Monitor (GPS-synchronized)
with UTC clock and multifunctional display (KT-013 MK II)
(an enhanced version of the acclaimed KT-003 kit)

(available: mid February 2026)

KT-013 prices*:

- fully assembled, enclosed and ready to use: $124 / €103

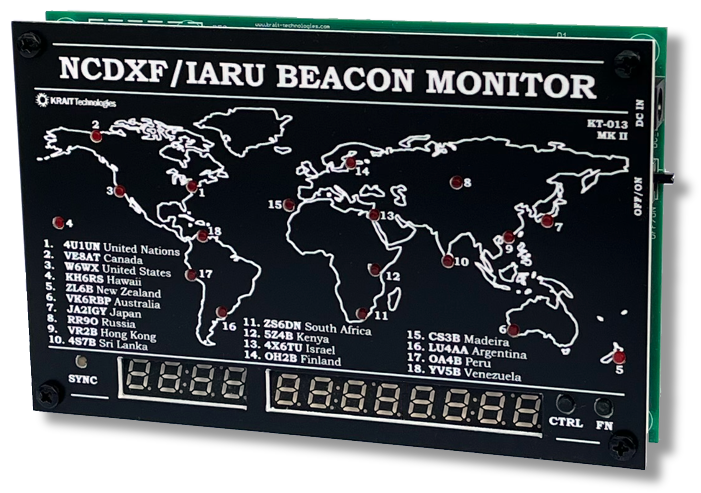

- fully assembled without enclosure: $114 / €95

- kit for THT self assembly (PCB, components + front panel) without enclosure: $94 / €78

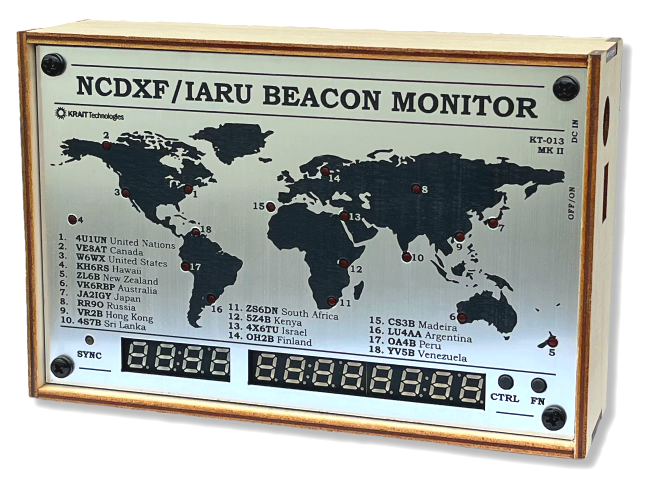

- wooden enclosure: $10 / €8

*) The listed prices apply to direct sales. When purchasing through Allegro

or eBay, the prices are adjusted to include the respective platform's commission fees.

YouTube promotional video (published January 11, 2026):

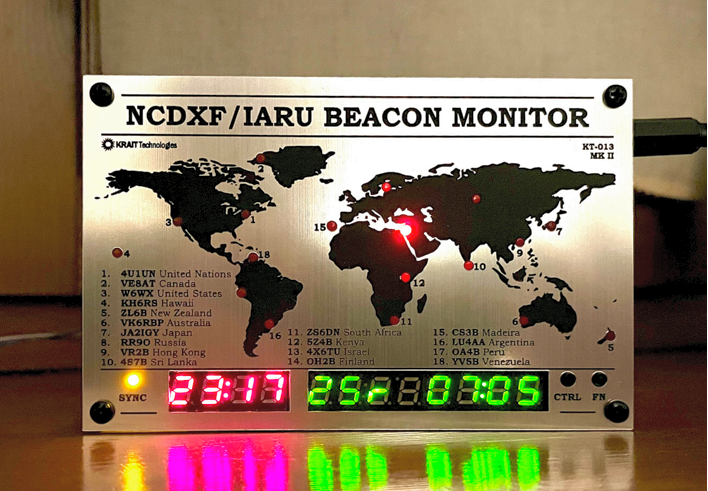

Example operation of the KT-013 MK II: simultaneous display of UTC and
the time-to-sunrise function. Many others features are in development.

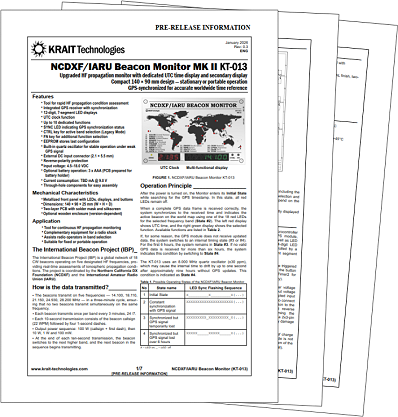

KT-013 User & Assembly Manual: [Pre-Release version]

KT-013 User & Assembly Manual [ENG version]

(Last update: January 06, 2026)

QRP Automatic Antenna Tuner
Mfr. No: KT-005
Ultra portable QRP ATU

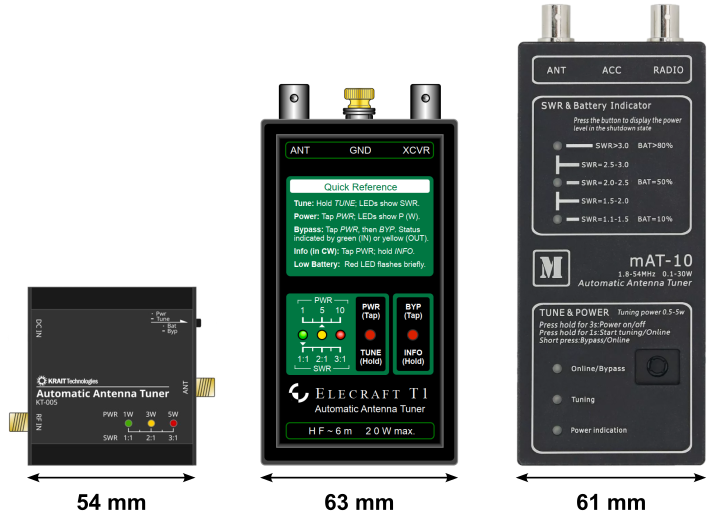

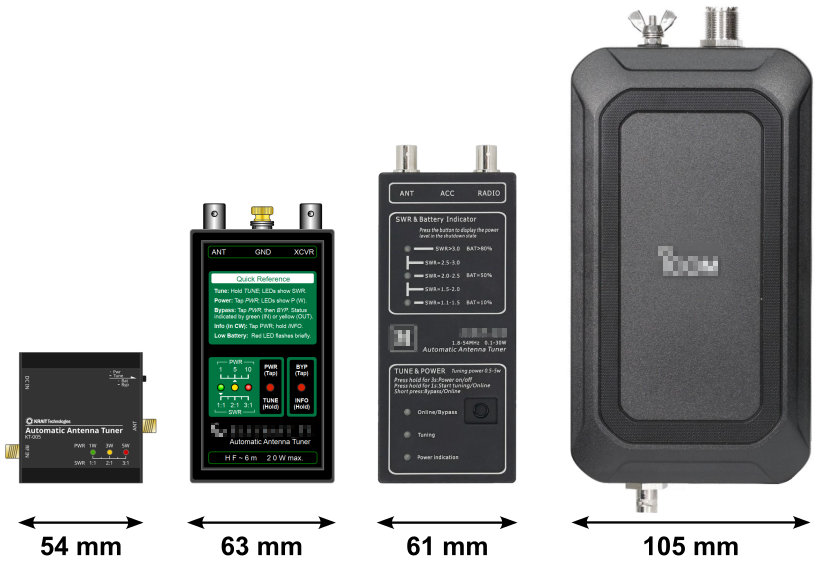

Device size comparison (from left to right): KT-005, T1, mAT-10, AH-705

(KT-005 is not equipped with an internal battery/rechargeable battery; however, thank to the use of latching
relays, the circuit does not require any power at all after tuning)

---------------------------------------------------------

Expected availability:

- Available from June 2025 on eBay (for EU customers) and Allegro Lokalnie
(for customers in Poland)

- Available for UK customers from July 2025

- Available for Australia customers from mid of September 2025

- Available for USA customers from end of September 2025

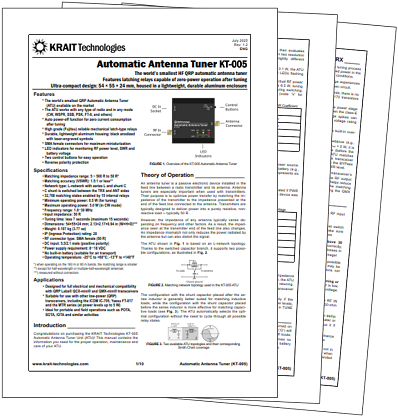

KT-005 User & Assembly Manual:

KT-005 User & Assembly Manual [ENG version]

(Last update: July 09, 2025)

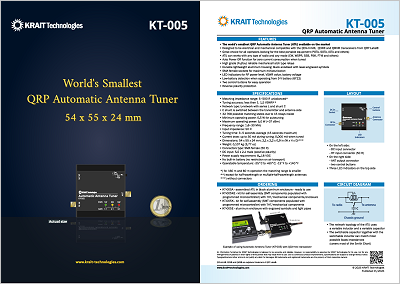

Product brochure:

KT-005 RELEASE information [ENG version]

(Last update: January 07, 2025)

KT-005 review on SOTA Reflector: KT-005 Review

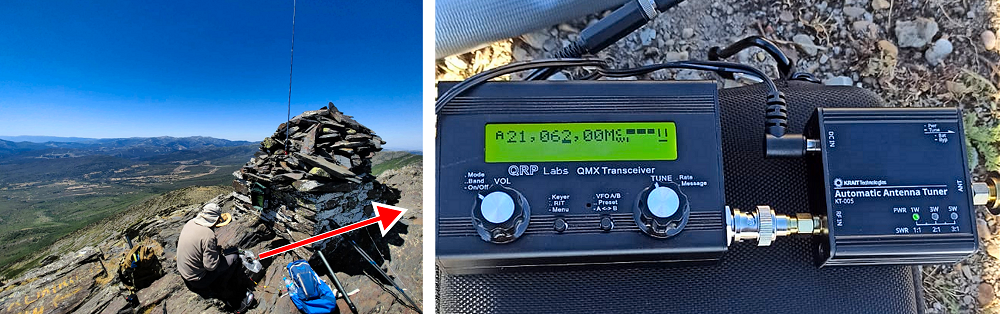

July 2025: The first confirmed SOTA expedition to use the KT-005 was by EA4R (Alfonso).
When it comes to hiking, size matters. The KT-005 ATU was digned to meet the need for quick
antenna tuning in all field conditions. Special thanks to Alfonso, EA4R, for sharing the photos.

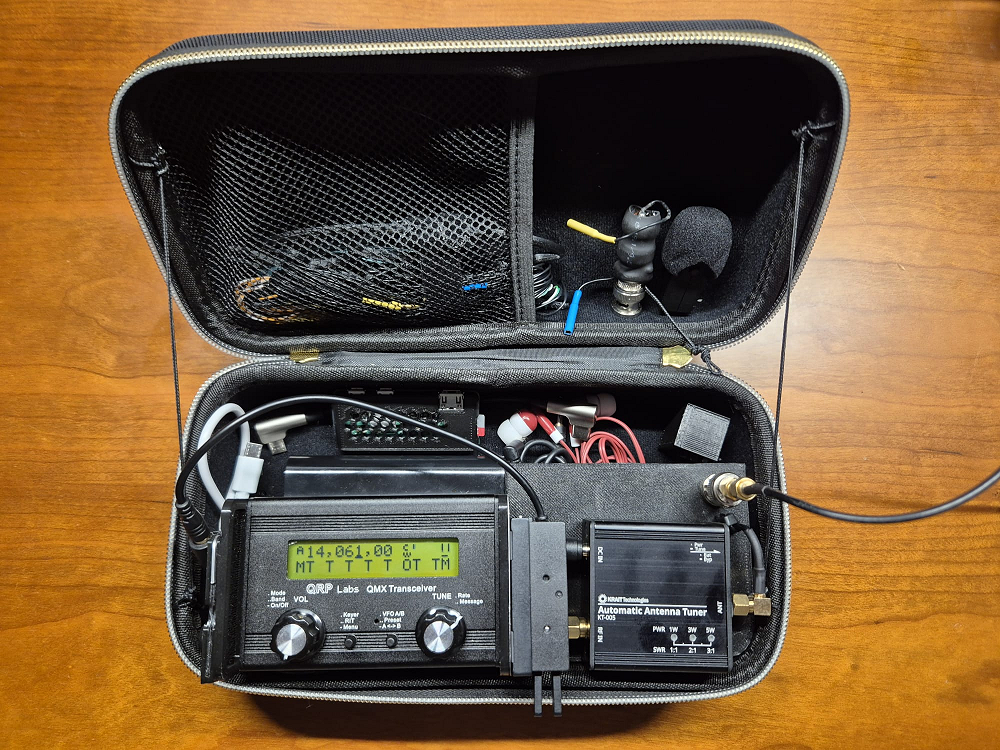

24.08.2025: Another great example of building a super-portable radio station using
the ATU (KT-005) with the QMX transceiver. Such a compact setup is a perfect solution
for SOTA operations. Thanks to David, CT7AUP, for sharing the photo.

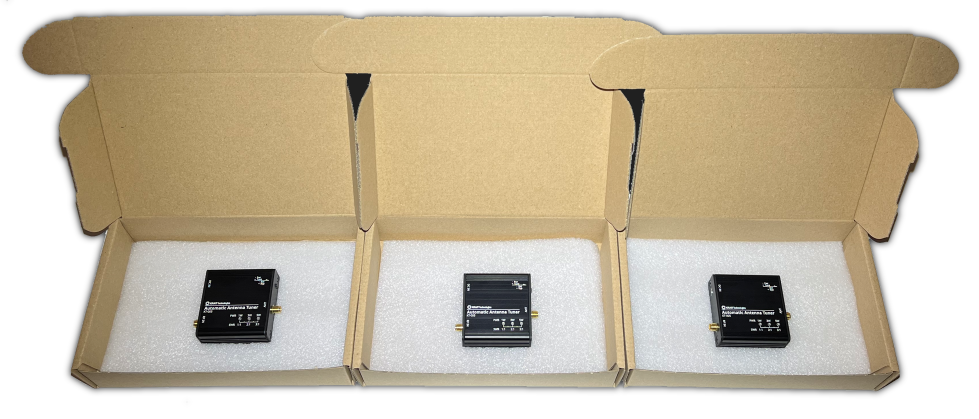

June 2025: First ATUs KT-005 ready for shipment

07.01.2025: ATU (KT-005) First production units undergoing final testing

---------------------------------------------------------

KT-005 prices*:

- fully assembled, enclosed and ready to use: $219 / €199

- kit for THT self assembly (SMT components populated) + enclosure: $175 / €157

- kit for THT self assembly (SMT components populated) without enclosure: $150 / €134

- enclosure: $25 / €20

*) The listed prices apply to direct sales. When purchasing through Allegro

or eBay, the prices are adjusted to include the respective platform's commission fees.

Shipping cost: (please contact directly for a detailed quote; the cost

depends on the destination country; use the email provided below)

- Poland: 5 EUR

- Belgium, France, Spain, Netherlands, Luxembourg, Portugal and Italy: 7 EUR only!

- other European Union countries : up to 28 EUR

- Outside Europe/Non-EU: up to $55 / €50

Information on additional fees (taxes and duties):

UK: Radio communication equipment (HS code: 85437090) is not subject to customs duties

— only a 20% tax is applied. The delivery may take up to 3-4 weeks!

USA: HTS 8517.70.00.00 ("parts of telecommunication apparatus") — no customs,

only some fees 43-48 USD; FedEx International Economy, about 62 USD

Switzerland: TBD

Australia: about 83 AUD (HS code: 854370), FedEx International Economy

---------------------------------------------------------

Questions & Answers:

Q: Why was the ATU KT-005 project created?

A: There were no antenna tuners on the market appropriately sized
to match the portable QCX® and QMX® transceivers. The KT-005 is half
the size of previously available solutions, offering true portability
without compromise. We built the ATU we'd want to carry with us
on every SOTA summit.

Q: Is the visual resemblance to the QCX®/QMX® transceivers coincidental?

A: No — the ATU KT-005 was deliberately designed as both a visual and
functional extension of the QCX®/QMX® transceiver series. Aesthetics matter.
More products in this series are on the way (e.g. the KT-019 NanoSpeaker — see
the datasheet in the section below).

Q: Why were SMA connectors used instead of BNC connectors?

A: Our top priority was maximum miniaturization. Even the smallest right-angle
BNC connector would have noticeably increased the device's size. In the
current design, there's literally no space left inside. You can see this for yourself
in the project documentation. To connect the ATU directly to the transceiver,
we recommend using a compact BNC-to-SMA adapter. SMA connectors also offer
lower signal loss.

Q: Why did the development of the ATU KT-005 take so long?

A: Well... the ATU project turned out to be much more complex than
it initially seemed. Our goal has always been to resolve all known issues
and deliver a product with factory-level quality — not something that still
feels like a prototype. We hope this approach is both understood and appreciated.

--------------------------------------

YouTube promotional video (published September 08, 2024):

---------------------------------------------------------------------------------

NanoSpeaker
Mfr. No: KT-019
Ultraportable high-efficient
active speaker for POTA/SOTA activations

Update: January 06, 2026

KT-019 Preliminary User Manual available!!!

KT-019 Nano Speaker - User Manual [ENG version]

Expected availability:

series (black enclosure like KT-005) - end of Q1 2026 - (due to moderate interest the series production is shifted)

>> If you are seriously interested, please let us know! The start of mass production depends on customer demand.

Price:

- assembled version in the enclosure: $45 or 43 EUR

- kit for self assembly (SMT components populated) + enclosure: $39 or 37 EUR

- enclosure: $25 or 23 EUR

NanoSpeaker (KT-019) in action (YouTube promotional video):

---------------------------------------------------------------------------------

SWRduino Mfr. No: KT-001K (kit) New tool for RF experiments with Arduino Uno board	RF Dummy Load Mfr. No: KT-002K (kit) or KT-002A (assembled) Cost effective HF + 6 m band 50R RF dummy load
Features Higly integrated QRP HF band SWR bridge up to 20 W Full compatibility with Arduino™ Uno board Tandem Match configuration for best directivity Only THT components for easy assembly Easy access to measured values (P fwd and P ref ) from ANALOG_IN input section Germanium diodes for best sensitivity Optional trimmers for precise adjusting SMA connectors for size critical applications (optional also BNC connectors) Equipped with ISP connector (2x3 pin header) Only passive components; no current consumption Mechanical Characteristics Full mechanical and electrical compatibility with Arduino™ Uno Board and LCD 2x16 shields Double-layer PCB Double-sided connectors for Arduino Compact design: 68 x 54 x 12 mm	Features Cost-effective HF + 6 m band 50R RF dummy load 100 W continuous power handling 300 W peak power handling capability Low VSWR levels up to 54 MHz UC-1 (PL-259) RF input connector Built-in fan for reliable continuous operation 2,1x5,5 DC input connector for the fan supply THT components for easy assembly Mechanical Characteristics Compact design: 80 × 80 x 75 mm (with fan) One layer PCB for easy components assembly Solid aluminum baseplate for the input connector
------------------------------------------------------------------------------------	------------------------------------------------------------------------------------
NCDXF/IARU Beacon Monitor Mfr. No: KT-003K (kit) or KT-003A (assembled) Useful tool for monitoring NCDXF/IARU beacons Available from June 2023! Features • Usefull tool for quick HF propagation condition check • Time synchronized with built-in GPS receiver • SYNC LED for monitoring synchronization state • CTRL button for band change • External DC_IN connector • Optional battery operation: 3x AAA (holes for a battery holder) • Current consumption: 60 mA @ 9.0 V • Input voltage range: 5.5-18.0 VDC • THT components only for easy assembly Mechanical Characteristics • Metalised front panel with set of LEDs and CTRL switch • Dimensions: 140 x 90 x 25 mm • Two layers PCB • Wooden enclosure available (sold separately) Application • Useful tool for easy HF propagation monitoring • Part of the radio shack KT-003 review on eHam.net: KT-003 Review KT-003 - *note in Practical Wireless* magazine (01/2026):** Link "Tools & Ideas for Monitoring Radio Wave Propagation (Pt I)" ------------------------------------------------------------------------------------ NCDXF/IARU Beacon Monitor Mfr. No: KT-003E Wooden enclosure for KT-003 kit Features • Laser cut plywood housing (3 mm thickness) with mounting holes and metal spacers • Supplied in parts, requires gluing	CWduino QRP HF CW Transmitter Mfr. No: KT-004K (kit) Superportable CW transmitter for Arduino Uno board with keyer input Features • Highly integrated CW transmitter compatible with Arduino Uno board • HF band coverage: 80, 40 and 20 m (depends on version) • Class-E topology for high efficiency • Built-in 2nd harmonic notch filter to meet CFR requirements (-43 dBc) • 500 mW RF output power from 5 VDC Arduino’s power supply rail • 2000 mW RF output power at 9 VDC • Transmitter keying available from pin PD4 (IOL group) • Precise frequency adjustment via trimmer • Keyer input connector (mini-jack) • Equipped with SMA connector for size critical applications • Equipped with ISP connector (2x3 pin header) • Most components are THT for easy assembly • Example projects for Arduino: CW Beacon and CW keyer available free for download Mechanical Characteristics • Fully mechanical and electrical compliance with Arduino™ Uno board • Double-layer PCB • Compact design: 68 × 54 x 12 mm Application • Board for experiments with class E amplifier • Experimental CW transmitter controlled from Arduino • Automatic keyer with integrated TX stage • Part of Arduino's controlled beacon (in CW mode) • Battery supplied experimental TX module • Part of a portable CW transceiver

Buy these products NOW on:

> eBay offers are available worldwide

> Allegro Lokalnie offers are visible to users in Poland (PL) only.

	Products under development: Antenna Impedance Monitor (KT-014) Novel real-time antenna impedance monitor (available 2026) Portable Active Speaker (KT-019) Compact powered speaker for POTA/SOTA operation (available end Q1/2026) Ultra-portable CW Paddle (KT-025) CW paddle for POTA/SOTA operation (available 2026)
